Fiber Laser Marking Machine
L3

L3 is a laser marking and cutting machine especially made for jewelry, to help jewelers utilize laser machines quickly and easily for their jewelry work. It has been developed by listening to the experiences of many jewelers and their specific demands regarding laser machines. Our main goal in the L3 development process was to offer an easy, fast, and convenient method of performing laser related jewelry work that is accessible to anyone, even novices. This goal has been achieved through our automated features, simplicity of software, powerful performance, and intuitive design for using the machine.
This 3rd-generation laser marking machine, L3, is mainly used at jewelry workshops to mark and produce jewelry products but is also very useful for performing marking services at jewelry retail stores, thanks to its compact and modern design, low noise operation and small footprint.

INTERACTIVE 360Β° VIEW

PRODUCT FEATURES

Uses

  • Black & white marking
  • Color marking
  • Photo marking
  • Cutting
  • Deep engraving
  • Cleaning

Functions

  • Designed for jewelry
  • Black, white and color marking
  • Camera positioning and auto focusing
  • 60W/100W high power cutting
  • Load-N- Go docking station
  • Quiet operation thanks to adaptive cooling system
  • Easy and quick change between pendant and ring modes

PRODUCT SPECIFICATION

Division Contents Division Contents
Model L3-20W / L3-30W / L3-60W / L3-100W Class Class 1 Laser Product
Focus Laser Class Class 2 Laser Product, <1mW Dimension 404mm(W) x 556mm(H) x 590mm(D)
(16” x 22” x 23”)
Max Material Height 100mm (3.94”) Max Z Stroke 100mm (3.94”)
Chamber Size 350mm(W) x 100mm(H) x 170mm(D)
(13.7” x 3.9” x 6.6”)
Safety Door Open Height 266mm (10.4”/From base plate)
Max Material Weight 20kg (44lbs) Weight 44kg (99lbs) / 46kg (101lbs) / 50kg (110lbs) / 54kg (119lbs)
Power AC 100V~240V, 50Hz / 60Hz Power Consumption 290W / 340W / 520W / 730W
Cooling System Air Cooling Temperature / Humidity 0~40Β° / 10~85%
Scroll the table

Detailed features

01

Designed for Jewelry

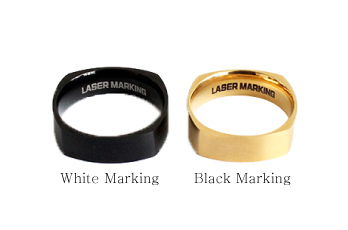

  • Black marking, white marking, cutting and deep marking
  • Quick change between pendant and ring marking modes, thanks to the cableless docking station
  • No need to remove the rotary clamp for pendant marking: this feature is built-in.
  • Just slide the clamp to the left for ring marking. It is automatically recognized by the Load-N-Go system.

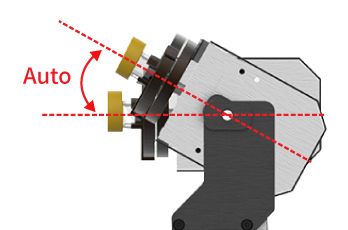

  • The rotary clamp tilts itself automatically in accordance with the ring size. No need to set the angle manually.
  • The laser focus is automatically set for interior and exterior engraving of rings. No manual focus adjustment is needed.
  • A variety of optional clamps are offered for easily marking complicated jewelry products
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
02

Features for Retail Shop Use

  • Unique and user-friendly design fits seamlessly with the interior design of retail shops
  • Small foot print requires very small space to install

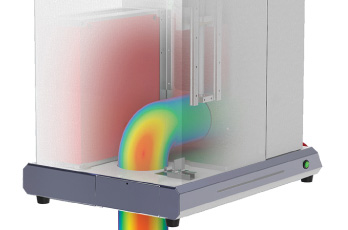

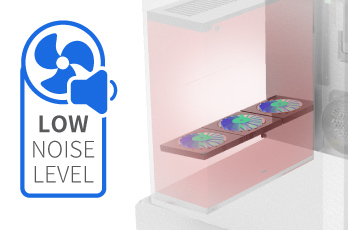

  • Very quiet operation, thanks to the adaptive cooling system which ensures that the fan operates only when needed with optimal speed

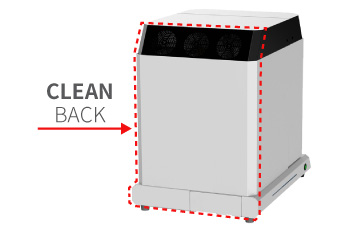

  • Clean back panel for in-store installation. The power cord, vacuum connector, etc. can be concealed to keep the back side of the machine clear, allowing the machine fit seamlessly with the interior design of retail shops.
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
03

Fully Automatic Laser Marking Machine

  • The camera helps design markings on the material image. This is very intuitive way of using the laser marking machine.
  • Laser auto focusing automatically finds the focus point.
  • The Load-N-Go docking station automatically sets the rotary clamp ready.
  • The rotary clamp automatically sets its angle in accordance with the ring size.
  • The electrically operating z axis is the base of automated features such as auto focusing.
  • The safety door is electrically and automatically operated.
  • The vacuum is electrically operated and automatically turned on and off.
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
04

Experience Easy Marking and Cutting

  • Batch operation with various marking and cutting option mixed
  • Batch engraving on materials with multilevel heights

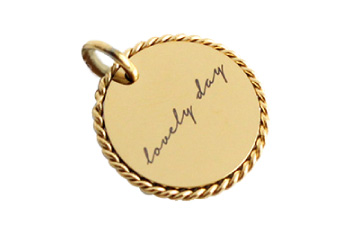

  • Engraving on curved materials
  • Letter-by-letter engraving for faster performance
  • Easily accessed repeat button to trigger the same operation conveniently
  • Easy to use and learn with MagicArt 7 software, which is included
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
05

Perfect Laser Solution for Jewelry Production (L3-60W/L3-100W)

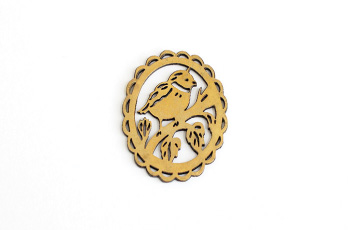

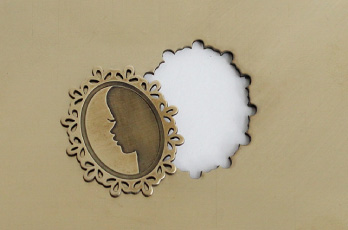

  • Powerful 60W or 100W output laser for faster cutting and deep engraving

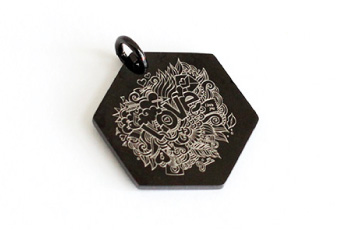

  • Fine-tune control of the laser output ensures high-contrast black/white marking and color marking.

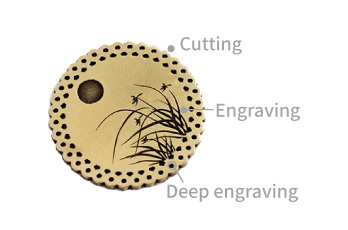

  • Batch process with mixture of white/blacking marking, deep engraving and cutting
  • A guide to time left for completion is displayed on the screen.
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
06

Safe Laser Marking Machine

  • L3 complies with Class 1 standards to ensure users can operate the machine safely.
  • The safety door ensures users are safe from the laser, and the dust and fume produced by the laser is prevented from scattering outside.
  • The vacuum system is directly connected to the machine and automatically turned on and off.
  • The vacuum intakes the dust and fumes more efficiently thanks to its internal air flowing structure.
  • The sight protection glass on the safety door protects users when looking inside the door, even when without a safety goggle.
  • Safety sensors detect the status of the laser machine and protect users from unsafe situations.
L3 | Fiber Laser Marking MachineL3 | Fiber Laser Marking Machine
L3 | Fiber Laser Marking Machine
