PRODUCT

High-speed marking system with laser
INGRASER L50

Fiber Marking Laser is able to do high-speed and high-accuracy marking on various materials employing Pulsed Wave Ytterbium-doped laser with scan head. The device has been used in various fields such as automobile, electricity, electronics and others for its own high-speed and accuracy.

It is a high-end marking solution that perfectly meets customer’s needs. RED Technology Marking Laser utilizes a configuration module known for its excellent quality and performance with its long-term use of this control technology. Also, it is adaptable to various requests from different industries fields as well as assuring industrial safety standards.

PRODUCT FEATURES

Key Features

  • Built-in laser shielding window for safe device use
  • Installation and use with compact size
  • Chamber structure for user’s safety
  • Specialized laser engraving software
  • It can engrave on the ring and pen

Common Features

  • Ultra high-speed marking on various metal metals
  • Various marking types such as regular marking, black marking
    and deep marking, etc
  • Easy Guide laser enabled to check marking position
  • Easy to check and set a focus height with a dual-focus beam
  • High-accuracy scan head provides clear marking for small letters
    which is difficult to discern with the naked eye

PRODUCT SPECIFICATION

Division Contents Division Contents
Max. engraving area 70(W)*70(D)*45(H)(mm) Resolution 0.001(mm)
Marking speed 3000mm/s Dimension 315(W)*570(D)*442(H)(mm)
Weight 34kg Operating voltage AC 100~240V, 50/60Hz
Blower power port AC 100~240V, 2A Power consumption <400
Cooling system Air cooling Operating temperature/humidity 15~35C˚/10~90%
Laser Type Fiber Laser/Source safety class Class 1 /Β  Class 4
Output 20W Wavelength 1064nm
Pulse width 200ns Frequency/Quality of laser beam 1~600kHz/<1.5MΒ²
Max material size 200(W)*250(D)*45(H)(mm) Pen length for Penclamp <150mm
Scroll the table

Detailed features

01

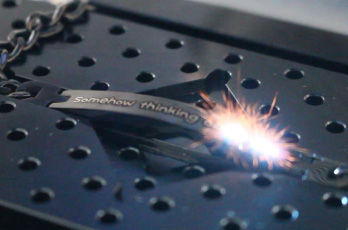

Ultra high-speed marking on various metal metals

  • High-quality marking on various metal materials such as jewelry, accessory, nameplate etc in an ultra-fast and accurate fashion.
  • Various marking types: Regular marking, Black marking and deep marking etc.
  • Selectable power (output) depending on the purposes.
02

Supports Pen marking

  • Provides an exclusive clamp for marking pens.
  • Easy marking with an exclusive clamp.
03

Engraving small letters

  • High-accuracy scan head provides clear marking for small letters in 0.5mm size which is difficult to discern with the naked eye.
04

Fast and easy focus setup

  • Easy to check and set a focus height with a dual-focus pointer
05

Automatic serial number marking

  • Repetitive marking such as serial number is automated to minimize user interference.
  • Automatic change of serial number with just an engraving button.
06

L type clamp to use easier

  • Just put down a material and start engraving without fixation.
07

Specialized laser engraving software

  • Intuitive interface provides easy-to-learn, dedicated software that provides automation to simplify marking of various formats
  • Easy to make texts, images, logos and barcodes.
  • Supports dxf, svg file extension.
08

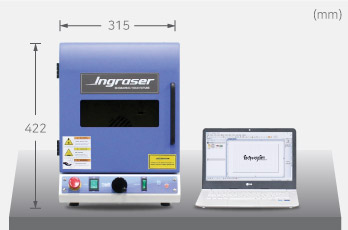

Easy installation and use with compact size

  • Minimizes installation space by designing compact size that can be placed on table.
  • The weight is devices lighter than the general laser engraver and makes transfer easier as well.
09

Direct control of Blower power

  • Provides a power switch to control the power of the blower directly from the device
  • Resolves the inconvenience of turning the power of the blower off and on every time
10

QR Code engraving system

  • Offers various types of marking formats for barcode such as 1D barcode, 2D Data Matrix, QR Code.
11

Intuitive height adjustment

  • Adopt manual height adjustment method
  • Easy and intuitive focus setting with focus pointer

product EXAMPLE

video

line

High-speed marking system with laser

product comparison table

λ ˆμ΄μ € λ§ˆν‚Ή μ»·νŒ…
L100 체크 체크 (30W)
CL50 체크(인μž₯쑰각)
L100T 체크
L200 체크 체크
L50 체크
FL1000 체크 체크 (30W)
FTL1000 체크 체크 (30W)
ν‘œλ₯Ό λ°€μ–΄λ³΄μ„Έμš”
Laser marking Cutting
L100 체크 체크 (30W)
L200 체크 체크
L50 체크
Scroll the table

What’s in the box

PRODUCT COMPONENT
Power Cable 1EA USB Cable 1EA Program Installation USX 1EA User Manual 1EA
Clamp 1SET Clamp Bolt
(M5-12mm)
4EA L-wrench(4mm) 1EA L-wrench(2mm) 1EA
MagicArt Program
Unlock USB
1EA Ruler 1EA Clamp Pin(6Ø) 2EA Blower 1EA
Blower Horse
(100Ø)
2EA Hose clamp
(4inch)
3EA
