PRODUCT

Cutting & Engraving Machine
MAGIC-20

MAGIC-20 is a metal engraving machine which engraves indelible letters or patterns in jewelry & metals such as gold, silver, copper and stainless steel with a diamond tool. Its noiseless, compact-size and neat design enables anyone to use it anywhere and its simple instructions allow anyone to engrave things beautifully in a quick and easy way.

PRODUCT FEATURES

Key Features

  • Compact sized cutting machine
  • Easier Machine Manipulation with 9 Key Buttons

Common Features

  • It engraves on plastic and most metals such as gold, silver, copper, stainless steel, etc.
  • It engraves symbols, patterns, and all sort of marks.
  • It cuts wood, plastic, acrylic and most metals.
  • Engraving with a diamond tool leaves the engraved surface smooth
  • It fastens most material without changing the clamp.
  • The depth of engraving is deep enough to be indelible
  • It engraves on curved surfaces.
  • Itโ€™s a very quiet engraving machine that can be used anywhere.
  • Capable of setting the location easily with laser pointer
  • The clamp structure is easily capable of handling optional clamps as necessary.
  • MagicART program included
  • Replaceable Clamps are optional

PRODUCT SPECIFICATION

Division Contents Division Contents
Size 288mm(W) x 303mm(H) x 355mm(D)
(inch 11.3(W) x 11.9(H) x 12.7(D))
Max. engraving area 130mm(X) x 116mm(Y) x 30mm(Z)
(inch 5.1(X) x 4.6(Y) x 1.2(Z))
Resolution 0.005mm(XY) / 0.00125mm(Z) Tool Diameter 4mm
Weight 24.6Kg(54 lb) Tool Type Diamond
Power Supply AC 100~240V 50/60Hz Power Consumtion 30W
Scroll the table

DETAILED FEATURES

01

Easier Machine Manipulation with 9 Key Buttons

  • – The Magic-20 comes with total of 9 key buttons to help easier engraving and machine operation.
02

Brighter LED Light

  • Brighter LED light lights the material for user’s clear sight.
03

Replace-able Clamp

  • The machine versatility can be expanded by replacing clamps in accordance with the object shape or size โ€“ or depending on the material.
imageA vise for easy fastening of various shapes/sizes
imageFlat-type clamp (Optional)
04

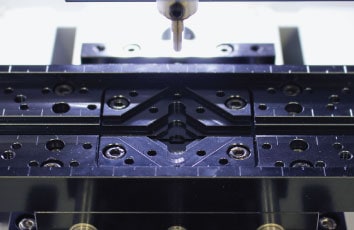

Multi-Purpose Clamp / Pin Holes and Gradation on the Clamp

  • A multi-purpose clamp fastens most materials without changing.
  • Pin holes on the clamp ensure easier holding of irregularly shaped material.
  • Gradation on the clamp also helps easier positioning of material on the clamp.
imageA pored clamp
imageA graduated clamp
05

Open Left Wall

  • The left wall of the machine is open, so long material can be held and engraved.
06

Laser Pointer

  • Its laser pointer points to the area of engraving for easy and errorless positioning.
07

External Power and Communication Port

  • A 5V external power port is built-in to control various external accessory devices.
  • A communication port is built-in to communicate with external tablet to engrave without a computer.

product EXAMPLE

PRODUCT COMPARISON TABLE

ํŒฌ๋˜ํŠธ ๋งˆํ‚น ๋ฐ˜์ง€ ๋‚ด์™ธ๊ฒฝ ๋ฑ…๊ธ€ ๋‚ด๊ฒฝ ๋ฑ…๊ธ€ ์™ธ๊ฒฝ ์ด๋‹ˆ์…œ ์ปทํŒ… ํŽœ ๋งˆํ‚น 3D Wax ํƒœ๋ธ”๋ฆฟ ํ˜ธํ™˜ ๋ธ”๋ฃจํˆฌ์Šค
Magic-1S chk ๋ฌด์„  chk
Magic-2S chk ๋ฌด์„  chk
Magic-5S chk chk chk ๋ฌด์„  chk
Magic-10 chk chk chk chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F350 chk chk chk chk USB
ํ‘œ๋ฅผ ๋ฐ€์–ด๋ณด์„ธ์š”
Pendant engraving Inner & outer diameter engraving of ring Inner diameter engraving of bangle Outer diameter engraving of bangle Cutting Pen engraving 3D carving Tablet PC connection Bluetooth
Magic-1S chk Bluetooth chk
Magic-2S chk Bluetooth chk
Magic-5S chk chk chk Bluetooth chk
Magic-10 chk chk chk chk chk USB
Magic-20 chk USB
Magic-30 chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F300P chk chk chk chk USB
Magic-F350 chk chk chk chk USB

* Magic-F30P. F300P, F350 support pen engraving horizontally. (Don't support rotation engraving)
* Magic-F300P, F350 support 3D carving. (Don't support roatation 3D carving)
* MagicTouch supports only engraving. (Doesn't support cutting)

Scroll the table

Whatโ€™s in the box

PRODUCT COMPONENT
Diamond tip(4ร˜) 1EA 2.5mm wrench 1EA Auxiliary jig 1SET Pin 6EA Multiperformance Clamp
(Additional Clamp)
1EA
Power adapter 1EA Ruler 1EA USB cable 1EA Program USB 1EA Userโ€™s manual 1EA
