Multifunctional Cutting & Engraving Machine MAGIC-F300P

Multifunctional Cutting & Engraving Machine
MAGIC-F300P

MAGIC-F300P is a multi-functional engraver & cutter capable of engraving letters and patterns on jewelry & metal materials
such as: gold, silver, copper, stainless steel or on wax, acrylic, wood.
Its high Z axis & its size make it capable of large size projects. and its simple directions enable anybody to easily carve things
beautifully. Because of its size, this versatile machine is designed not only for artistcs and crafts use.

PRODUCT FEATURES

Key Features

A wide flat vise up to 300mm x 200mm
Ability to engrave on thick material up to 80mm
Depth regulating nose which engraves on uneven surface.
Cutting & engraving in symbols, Chinese character, patterns and various marks are available.
It fastens most material without changing the clamp.
Its 5 sensors measure automatically the material and tool for easy cutting & engraving.

Common Features

It’s used for engraving on every type of metal such as gold, silver, copper, stainless steel etc.
It carves wax, chemical wood etc. in 3D
A larger graphic LCD screen shows machine status and guides machine use.
S/W, the MagicArt, is included for easy use.

PRODUCT SPECIFICATION

Division	Contents	Division	Contents
Size	470mm(W) x 375mm(H) x 455mm(D) (inch 18.5(W) x 14.8(H) x 17.9(D))	Max. engraving area	268mm(X) x 200mm(Y) x 32.5mm(Z) (inch 10.5(X) x 7.9(Y) x 1.3(Z))
Resolution	0.005mm(XY) / 0.00125mm(Z)	Max. cutting area	210mm(X) x 120mm(Y ) (inch 8.3(X) x 4.7(Y))
Weight	32.5Kg(72 lb)	Spindle Revolution	9,000~15,000RPM
Spindle Motor Power	27W	Power Consumption	120W
Power Supply	AC 100~240V 50/60Hz	Tool Diameter	4mm
Scroll the table

Detailed features

Replace-able Clamp

The machine versatility can be expanded by replacing clamps in accordance with the object shape or size – or depending on the material.

A vise for easy fastening of various shapes/sizes

Flat-type clamp

Multi-Purpose Clamp / Pin Holes and Gradation on the Clamp

A multi-purpose clamp fastens most materials without changing.
Pin holes on the clamp ensure easier holding of irregularly shaped material.
Gradation on the clamp also helps easier positioning of material on the clamp.

A pored clamp

A graduated clamp

Vises Adjustability According to the Height of Materials.

Ability to engrave on thick material up to 80mm

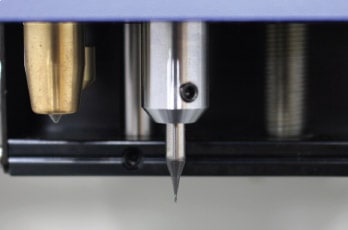

Endmills or V-Cutters Available for Carving

Equiped spindle motor enable to use various types of endmills or v-cutters for carving on metal.

Open Back

– The back of the machine is open to enable engraving of longer materials.

Equipped With Spindle Speed Controller

Useful for wax 3D carving.

Laser Pointer

Its laser pointer points to the area of engraving for easy and errorless positioning.

Brighter LED Light

Brighter LED light lights the material for user’s clear sight.

External Power and Communication Port

A 5V external power port is built-in to control various external accessory devices.

product EXAMPLE

PRODUCT COMPARISON TABLE

	팬던트 마킹	반지 내외경	뱅글 내경	뱅글 외경	이니셜 컷팅	펜 마킹	3D Wax	태블릿 호환	블루투스
Magic-1S		chk						무선	chk
Magic-2S	chk							무선	chk
Magic-5S	chk	chk		chk				무선	chk
Magic-10		chk	chk	chk		chk	chk	USB
Magic-50	chk	chk	chk	chk		chk		USB
Magic-70	chk	chk	chk	chk	chk	chk	chk	USB
Magic-F350	chk				chk	chk	chk	USB
표를 밀어보세요

	Pendant engraving	Inner & outer diameter engraving of ring	Inner diameter engraving of bangle	Outer diameter engraving of bangle	Cutting	Pen engraving	3D carving	Tablet PC connection	Bluetooth
Magic-1S		chk						Bluetooth	chk
Magic-2S	chk							Bluetooth	chk
Magic-5S	chk	chk		chk				Bluetooth	chk
Magic-10		chk	chk	chk		chk	chk	USB
Magic-20	chk							USB
Magic-30	chk				chk			USB
Magic-50	chk	chk	chk	chk		chk		USB
Magic-70	chk	chk	chk	chk	chk	chk	chk	USB
Magic-F300P	chk				chk	chk	chk	USB
Magic-F350	chk				chk	chk	chk	USB
* Magic-F30P. F300P, F350 support pen engraving horizontally. (Don't support rotation engraving) * Magic-F300P, F350 support 3D carving. (Don't support roatation 3D carving) * MagicTouch supports only engraving. (Doesn't support cutting)
Scroll the table

What’s in the box

PRODUCT COMPONENT
Diamond tip (4Φ)	1EA	Carbide tip (4Φ)	1EA	Endmill cutter (4Φ, 0.6mm)	2EA	L- wrench ( 2.5, 4, 5 mm)	3EA	2.0mm wrench	1EA
Auxiliary Adapter	1SET	Ruler	1EA	Clamp Set	1SET	Clamp bolt 1	4EA	Clamp bolt 2	1SET
Pin set	1SET	Multi purpose Clamp	1EA	Depth Regulating Nose (4Ø)	1EA	Tool top loading adapter	2EA	Spindle belt (40Ø/40mm)	3EA
Power adapter	1EA	USB cable	1EA	Program USB	1EA	User’s Manual	1EA	Flat-type clamp	1EA
