PRODUCT

Nameplate Cutting Machine
MAGIC-F30P

MAGIC-F30P is a multifunctional engraver & cutter capable of engraving letters or patterns in jewelry & metal materials such as gold, silver, coper, stainless steel with diamond tool, or in wax for carving, acrylic, woods. Its big size design make it available anywhere, and its simple directions enable anybody to carve things beautifully in quick and easy ways.

PRODUCT FEATURES

Key Features

  • It cuts wood, plastic, acrylic and most metals.
  • It has large working area for engraving/cutting the materials.

Common Features

  • It engraves on plastic and most metals such as gold, silver, copper, stainless steel, etc.
  • It engraves symbols, patterns, and all sort of marks.
  • It cuts wood, plastic, acrylic and most metals.
  • Engraving with a diamond tool leaves the engraved surface smooth
  • It fastens most material without changing the clamp.
  • The depth of engraving is deep enough to be indelible
  • It engraves on curved surfaces.
  • It’s a very quiet engraving machine that can be used anywhere.
  • Capable of setting the location easily with laser pointer
  • The clamp structure is easily capable of handling optional clamps as necessary.
  • MagicART program included
  • Replaceable Clamps are optional
μ΄λ‹ˆμ…œ μ»·νŒ… 쑰각기 MAGIC-F30P

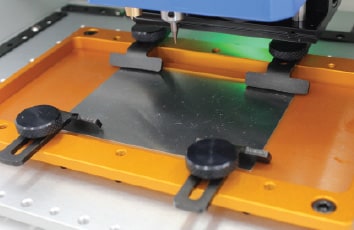

Clamp for name necklace cutting

μ΄λ‹ˆμ…œ μ»·νŒ… 쑰각기 MAGIC-F30P

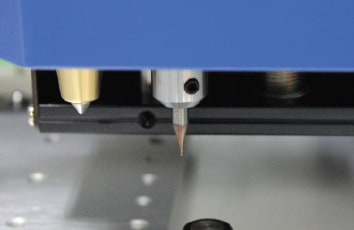

A tool for metal, acrylic, wood, wax

μ΄λ‹ˆμ…œ μ»·νŒ… 쑰각기 MAGIC-F30P

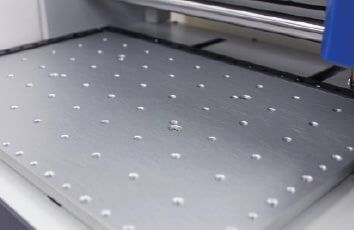

A wide flat vise up to
300mm x 200mm

PRODUCT SPECIFICATION

Division Contents Division Contents
Size 465mm(W) x 278mm(H) x 388mm(D)
(inch 18.3(W) x 10.9(H) x 15.3(D))
Max. engraving area 300mm(X) x 187mm(Y) x 29.5mm(Z)
(inch 11.8(X) x 7.4(Y) x 1.2(Z))
Resolution 0.005mm(XY) / 0.00125mm(Z) Max. cutting area 210mm(X) x 120mm(Y )
(inch 8.3(X) x 4.7(Y))
Weight 28.5Kg(63 lb) Spindle Revolution 15,000RPM
Spindle Motor Power 27W Power Consumption 50W
Power Supply AC 100~240V 50/60Hz Tool Diameter 4mm
Scroll the table

product EXAMPLE

video

line

Nameplate Cutting Machine

PRODUCT COMPARISON TABLE

팬던트 λ§ˆν‚Ή λ°˜μ§€ λ‚΄μ™Έκ²½ λ±…κΈ€ λ‚΄κ²½ λ±…κΈ€ μ™Έκ²½ μ΄λ‹ˆμ…œ μ»·νŒ… 펜 λ§ˆν‚Ή 3D Wax νƒœλΈ”λ¦Ώ ν˜Έν™˜ λΈ”λ£¨νˆ¬μŠ€
Magic-1S chk 무선 chk
Magic-2S chk 무선 chk
Magic-5S chk chk chk 무선 chk
Magic-10 chk chk chk chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F350 chk chk chk chk USB
ν‘œλ₯Ό λ°€μ–΄λ³΄μ„Έμš”
Pendant engraving Inner & outer diameter engraving of ring Inner diameter engraving of bangle Outer diameter engraving of bangle Cutting Pen engraving 3D carving Tablet PC connection Bluetooth
Magic-1S chk Bluetooth chk
Magic-2S chk Bluetooth chk
Magic-5S chk chk chk Bluetooth chk
Magic-10 chk chk chk chk chk USB
Magic-20 chk USB
Magic-30 chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F300P chk chk chk chk USB
Magic-F350 chk chk chk chk USB

* Magic-F30P. F300P, F350 support pen engraving horizontally. (Don't support rotation engraving)
* Magic-F300P, F350 support 3D carving. (Don't support roatation 3D carving)
* MagicTouch supports only engraving. (Doesn't support cutting)

Scroll the table

What’s in the box

PRODUCT COMPONENT
Diamond tip(4Ø) 1EA Carbide tip(4Ø) 1EA End mill(4Ø) 2EA L- wrench
(2.5, 4 mm)
3EA 2mm wrench 3EA
Clamp set 1SET Push bolt 4EA Bolt 1SET Ruler 1EA Spindle belt
(40Ø/40mm)
3EA
Power adapter 1EA USB cable 1EA Program CD 1EA User’s manual 1EA
Scroll the table
