PRODUCT

Nameplate Cutting Machine
MAGIC-F350

Magic-F350 is a specialized machine for metal cutting which includes cutting oil circulator. It is capable of engraving letters and patterns on jewelry & metal materials. Its upgraded speed and cutting oil make it possible to complete the work without noise and time-wasting. Specialized cutting clamp for F350 and cutting oil could also contribute to your better result by filtering chips and prolonging the tool’s life.

PRODUCT FEATURES

Key Features

  • Specialized machine for Metal & Nameplate cutting
  • Clean cutting-section and shortened post-processing
  • Automated cutting oil circulator equipped
  • Improved Cutting speed and power with BLDC motor
  • Has function to filter the chips
  • Prolonged tool’s life
  • Specialized cutting clamp for F350
  • It carves wax, chemical wood etc. in 3D

Common Features

  • It engraves on plastic and most metals such as gold, silver, copper, stainless steel, etc.
  • It engraves symbols, patterns, and all sort of marks.
  • It cuts wood, plastic, acrylic and most metals.
  • Engraving with a diamond tool leaves the engraved surface smooth
  • It fastens most material without changing the clamp.
  • The depth of engraving is deep enough to be indelible
  • It engraves on curved surfaces.
  • It’s a very quiet engraving machine that can be used anywhere.
  • Capable of setting the location easily with laser pointer
  • The clamp structure is easily capable of handling optional clamps as necessary.
  • MagicART program included
  • Replaceable Clamps are optional
Nameplate Cutting Machine MAGIC-F350

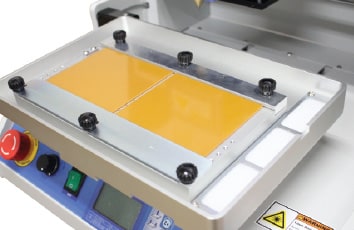

A cutting clamp for
nameplate necklaces

Nameplate Cutting Machine MAGIC-F350

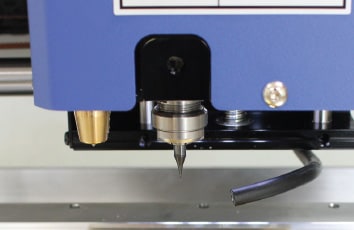

Collet & Nut type tool

Nameplate Cutting Machine MAGIC-F350

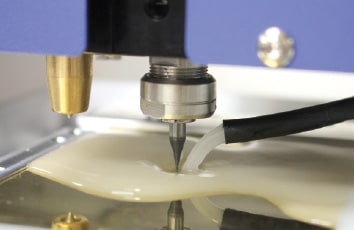

Automated Cutting oil Circulator

PRODUCT SPECIFICATION

Division Contents Division Contents
Size 470mm(W) x 375mm(H) x 455mm(D)
(inch 18.5(W) x 14.8(H) x 17.9(D))
Max. engraving area 220mm(X) x 100mm(Y) x 38.5mm(Z)
(inch 8.7(X) x 3.9(Y) x 1.5(Z))
Resolution 0.005mm(XY) / 0.00125mm(Z) Max. cutting area
Weight 38.5Kg(85 lb) Spindle Revolution 20,000RPM
Spindle Motor Power 70W Power Consumption 120W
Power Supply AC 100~240V 50/60Hz Tool Diameter 4mm
Scroll the table

product EXAMPLE

video

line

Name Necklace Cutting

PRODUCT COMPARISON TABLE

팬던트 λ§ˆν‚Ή λ°˜μ§€ λ‚΄μ™Έκ²½ λ±…κΈ€ λ‚΄κ²½ λ±…κΈ€ μ™Έκ²½ μ΄λ‹ˆμ…œ μ»·νŒ… 펜 λ§ˆν‚Ή 3D Wax νƒœλΈ”λ¦Ώ ν˜Έν™˜ λΈ”λ£¨νˆ¬μŠ€
Magic-1S chk 무선 chk
Magic-2S chk 무선 chk
Magic-5S chk chk chk 무선 chk
Magic-10 chk chk chk chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F350 chk chk chk chk USB
ν‘œλ₯Ό λ°€μ–΄λ³΄μ„Έμš”
Pendant engraving Inner & outer diameter engraving of ring Inner diameter engraving of bangle Outer diameter engraving of bangle Cutting Pen engraving 3D carving Tablet PC connection Bluetooth
Magic-1S chk Bluetooth chk
Magic-2S chk Bluetooth chk
Magic-5S chk chk chk Bluetooth chk
Magic-10 chk chk chk chk chk USB
Magic-20 chk USB
Magic-30 chk chk USB
Magic-50 chk chk chk chk chk USB
Magic-70 chk chk chk chk chk chk chk USB
Magic-F300P chk chk chk chk USB
Magic-F350 chk chk chk chk USB

* Magic-F30P. F300P, F350 support pen engraving horizontally. (Don't support rotation engraving)
* Magic-F300P, F350 support 3D carving. (Don't support roatation 3D carving)
* MagicTouch supports only engraving. (Doesn't support cutting)

Scroll the table

What’s in the box

PRODUCT COMPONENT
Diamond tip(4Ø) 1EA Carbide tip(4Ø) 1EA Endmill cutter
(4Ø, 0.6mm)
2EA L- wrench
(2.5, 4, 5 mm)
3EA Spanner 1Set
Ruler 1EA Clamp set 1SET Push bolt 4EA Clamp bolt 1SET Multi purpose Clamp
(Optional)
1EA
Spindle belt
(40Ø/40mm)
6EA Power adapter 1EA USB cable 1EA Program USB 1EA User’s Manual 1EA
Coolant circulator 1SET Cutting clamp 1SET
Scroll the table
