Stamping mold making machine
IMP-C1

IMP-C1 is able to engrave metals without the use of brass cutting oil and other materials.
Anyone can now easily engrave metal molds & dies (leather/paper embossing stamps, gold/silver molds, die cutting, branding iron, etc.).

PRODUCT FEATURES

Key Features

Faster production by automatically changing between roughing and finishing cutting tools with the use of two 14,5000 RPM spindle motors.
Tool lifespan is fairly extended with the use of different roughing and finishing cutting tools.
Easy to fix the materials in place with optimized clamp.
75×45 working area gives the ability to engrave most leather stamps.
Easy tool change with a Setscrew spindle.

Common Features

Automatically checks the tool’s height.
Automatically processes all fragmented actions once the user locks the material in place.
Accurate and low-noise Z-axis with built-in ball screw.
Guide shield structure minimizes the chips getting stuck on the feed shaft.
Shortened engraving time with various standardized brass molds.
Capable of making leather cutting dies.
Offers special software for leather stamp making.
Fast and easy-to-learn software.
Able to design not only alphabets and Arabic numbers but also patterns and logos.
Reasonable maintenance with expendables being only the tools and spindle belt.

PRODUCT QUALIFICATION

Division	Contents	Division	Contents
Size	270mm(W) x 360mm(H) x 352mm(D) (inch 10.6(W) x 14.2(H) x 13.9(D))	Operating range	45mm(X) x 75mm(Y) x 30mm(Z) (inch 1.8(X) x 3(Y) x 1.2(Z)
Resolution	0.005mm(X), 0.00125mm(Z)	Weight	23.7kg(52 lb)
Spindle motor	27W, DC	RPM	14,500RPM(Rough Grinding) / 14,500RPM(Finishing)
Tool diameter	Rough Grinding: 4mm / Finishing: 3mm	Tool fix method	Set screw
Display	2.4 inch graphic LCD	Communication	USB
Power adapter	24V DC 2.5A	Power supply	AC 100~240V 50/60Hz
Consumption voltage	30W	Transfer speed	1 – 36mm/sec (XY), 1 – 18mm/sec (Z)
Temperature/Humidity	5 ~ 40ºC (41 ~ 60℉) / 35 ~ 80%	Purposes	Leather stamp, Thompson cutter manufacturing etc.
Scroll the table

Detailed features

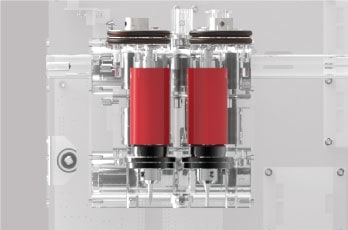

Faster production by automatically changing between roughing and finishing cutting tools with the use of two 14,5000 RPM spindle motors.

Equipped with two 14,500 RPM spindle motors
Equipped with two cutters and automatically changes tools
Tool lifespan is extended with automatic tool changing system

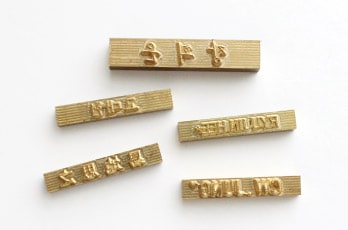

Able to design not only alphabets and Arabic numbers but also patterns and logos.

Able to engrave most shapes.
Capable of mixing different languages, which is not possible with other conventional machines.
Engraves not only brand names and phone numbers but also customized images such as patterns and letters.

Tool lifespan extended by with the use of different roughing and finishing cutters.

Using two built-in spindles, the tools lifespan is further extended.

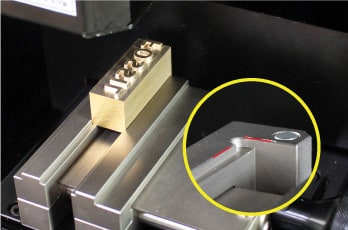

Optimized clamp for fixing and engraving brass

Easily fix a material in place with specialized clamp
Easily raise, push, or tighten the material on the base.

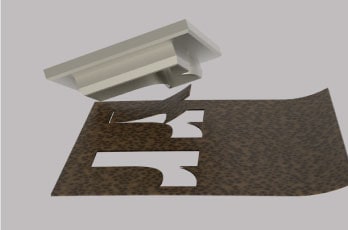

Capable of making leather cutting dies

Able to make die cutting shape with any width and depth.
Able to directly make cutting dies for small quantity manufacturing.

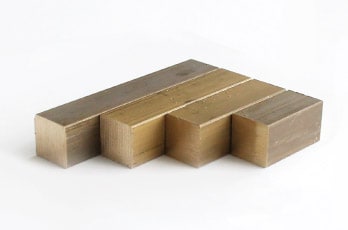

Shortened the engraving time with various standardized brass molds

Offers various standardized materials.
Reduces cost by selecting the suitable size of materials there by making production of single-use molds possible.
Lessens the production time and extends the tools lifespan.

75x45mm working area

Sufficient working area for most embossing die molds.

Easy tool change with Setscrew Spindle

Equipped setscrew-type spindle that can easily be
loosened using a wrench to change the tool

product EXAMPLE

video

line

Leather stamp making machine

product comparison table

What’s in the box

PRODUCT COMPONENT
Endmill [Rough Grinding]	1EA	V-Cutter [Finishing]	2EA	1.5mm L-Wrench	1EA	2mm Wrench	1EA
Spindle Belt (50Ø / 50mm)	1EA	Program USB	1EA	Instruction Manual	1EA	USB Cable	1EA
Power Adapter	1EA	Brush	1EA	Ruler	1EA	Brass test material (63015mm)	2EA
Gloves	1EA	Chip cover	1EA
