High-speed marking system with laser INGRASER L100

High-speed marking system with laser
INGRASER L200

Fiber Marking Laser is able to do high-speed and high-accuracy marking on various materials employing Pulsed Wave Ytterbium-doped laser with scan head. The device has been used in various fields such as automobile, electricity, electronics and others for its own high-speed and accuracy.

It is a high-end marking solution that perfectly meets customer’s needs. RED Technology Marking Laser utilizes a configuration module known for its excellent quality and performance with its long-term use of this control technology. Also, it is adaptable to various requests from different industries fields as well as assuring industrial safety standards.

PRODUCT FEATURES

Key Features

Ultra high-speed marking on various metals
Various marking types such as regular marking,
black marking and deep marking, etc.
Easy Guide laser enabled to check marking position
A guideline at the working area with easy marking
position recognition
Fix a workpiece in a fast and convenient manner by just
putting it down
Selectable power output depending on the purposes
Easy to check and set a focus height with a dual-focus beam
High-accuracy scan head provides clear marking for small letters
which is difficult to discern with the naked eye

Common Features

The thick material is engravable with Z axis auto-movement function
Built-in laser shielding window and cover sensor for safe device use
Installation and use with compact size
Chamber structure for user’s safety
Specialized laser engraving software
Directly interlocks external devices such as dust collector and others

PRODUCT SPECIFICATION

60W
Max. engraving area	110110100(mm)	Resolution	0.001(mm)
Marking speed	3000mm/s	Dimension	378(W)625(D)612(H)(mm)
Weight	56kg	Operating voltage	AC 100~240V, 50/60Hz
Blower power port	AC 100~240V, 2A	Power consumption	<550
Cooling syste	Air cooling	Operating temperature/humidity	15~35C˚/10~90%
Laser Type	Fiber	Laser / Source safety class	Class 1 / Class 4
Output	60W	Wavelength	1064nm
Pulse width	200ns	Frequency/Quality of laser beam	1~600kHz/<1.8M²
Chamber size	332(W)170(D)100(H)(mm)	Engraving area for RotaryClamp	Out:<85 , In:<70(mm)

100W
Max. engraving area	110110100(mm)	Resolution	0.001(mm)
Marking speed	3000mm/s	Dimension	378(W)625(D)612(H)(mm)
Weight	56kg	Operating voltage	AC 100~240V, 50/60Hz
Blower power port	AC 100~240V, 2A	Power consumption	<550
Cooling system	Air cooling	Operating temperature/humidity	15~35C˚/10~90%
Laser Type	Fiber	Laser / Source safety class	Class 1 / Class 4
Output	100W	Wavelength	1064nm
Pulse width	200ns	Frequency/Quality of laser beam	1~600kHz/<1.8M²
Chamber size	332(W)170(D)100(H)(mm)	Engraving area for RotaryClamp	Out:<85 , In:<70(mm)
Scroll the table

Detailed features

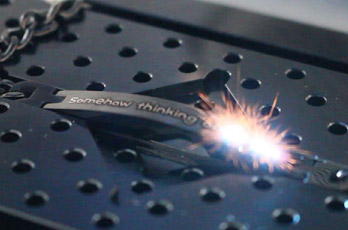

Ultra high-speed marking on various metals

High-quality marking on various metal materials such as jewelry, accessory, nameplate,etc in an ultra-fast and accurate fashion.
Various marking types: Regular marking,Black marking and deep marking, etc.
Selectable power (output) depending on the purposes.

A high efficiency compared to low power

Fast cutting speed compared to low power
Beam thickness can be adjusted to cut thick material

Engraving small letters

High-accuracy scan head provides clear marking for small letters in 0.5mm size which is difficult to discern with the naked eye.

Guide laser enables to check marking position

Guide laser enables to check the design and position

Fast and easy focus setup

Easy to check and set a focus height with a dual-focus pointer

Lines with easy marking position recognition

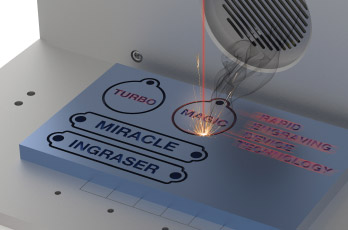

Lattice and center position lines are engraved on the clamp surface for easy marking position setup

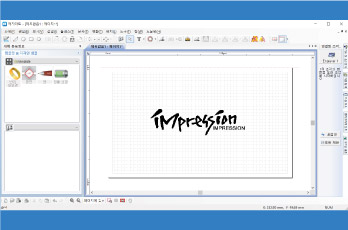

Specialized laser engraving software

Intuitive interface provides easy-to-learn, dedicated software that provides automation to simplify marking of various formats
Easy to make texts, images, logos and barcodes.
Supports dxf, svg file extension.

Easy installation and use with compact size

Minimizes installation space by designing compact size that can be placed on table.
The weight is lighter than the general laser engravers and makes transfer easier as well.

L type clamp to use easier

Just put down a material and start engraving without fixation.

Automatic moving cover

Automatically opens and closes its own cover when start marking.

100mm Stroke Z-axis

Engraves maximum 100mm height material.
Memorizes of materials height and position.

Directly interlocks external devices such as dust collector and others

Control the external devices such as dust collector and others directs when engraving occurs.
For example, if a dust collector is connected, dust collection starts at the time when engraving begins and shuts down automatically when engraving is done.

product EXAMPLE

product comparison table

What’s in the box

PRODUCT COMPONENT
Power Cable	1EA	USB Cable	1EA	Program CD	1EA	User Manual	1EA
Clamp	1SET	Clamp Bolt (512mm)	4EA	L-wrench(4mm)	1EA	L-wrench(2mm)	1EA
MagicArt Program Unlock USB	1EA	Ruler	1EA	Clamp Pin(6Ø)	2EA
